ATF1504SL - EEPROM

This page provides the datasheet information for the ATF1504SL, a member of the ATF1508SE EEPROM family.

Datasheet Summary

Description

Beginning with the introduction of the 100% connected ATF1500 with 32 enhanced macrocells in 1996, Atmel’s CPLD products have delivered extra IO connectivity and logic reusability.

Features

  • 2nd Generation EE PROM-based Complex Programmable Logic Devices.
  • VCCIO of 5.0V or 3.3V with 3.3V Operation being 5V Tolerant.
  • 32 - 256 Macrocells with Enhanced Features.
  • Pin-compatible with Industry Standard Devices.
  • Speeds to 5 ns Maximum Pin-to-pin Delay.
  • Registered Operation to 250 MHz Enhanced Macrocells with Logic Doubling™ Features.
  • Bury Either Register or COM while Using the Other for Output.
  • Dual Independent Feedbac.

📥 Download Datasheet

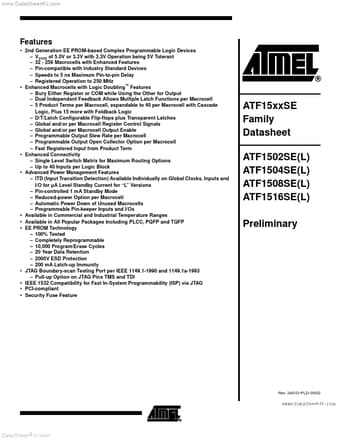

Datasheet preview – ATF1504SL
