U6032B Datasheet, Ic, ATMEL Corporation

U6032B Features

  • Ic
  • Debounce Time: 0.3 ms to 6 s
  • RC Oscillator Determines Switching Characteristics
  • Relay Driver with Z-diode
  • Debounced Input for Toggle Switch

PDF File Details

Part number:

U6032B

Manufacturer:

ATMEL Corporation

File Size:

162.42kb

Download:

📄 Datasheet

Description:

Automotive toggle switch ic. The bipolar integrated circuit U6032B is designed as a toggle switch. The device, which has a defined power-on status, can be used to

Datasheet Preview: U6032B 📥 Download PDF (162.42kb)
Page 2 of U6032B Page 3 of U6032B

U6032B Application

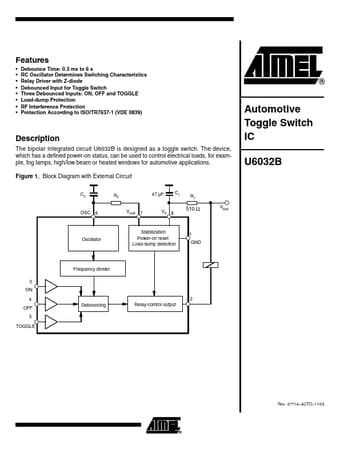

  • Applications Figure 1. Block Diagram with External Circuit Automotive Toggle Switch IC U6032B C2 OSC 6 R2 Vstab 7 47 µF C1 R1 VS 8 510 Ω VB
