AT17LV002A, AT17LV512A, FPGA Configuration EEPROM Memory

Note 1.AT17LV65A, AT17LV128A, and AT17LV256A are Not Recommended for New Designs (NRND) and are Replaced by AT17LV512A.AT17LV65A(1), AT17LV128A(1),.

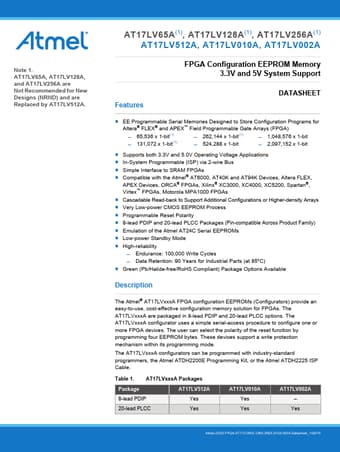

datasheet Preview Page 1 from Datasheet4u.com

AT17LV512A_ATMELCorporation.pdf

AT17LV002A Datasheet Preview — This datasheet PDF includes multiple part numbers: AT17LV002A, AT17LV512A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AT17LV002A, AT17LV512A

Manufacturer:

ATMEL

File Size:

280.72 KB

Description:

FPGA Configuration EEPROM Memory

Note:

This datasheet PDF includes multiple part numbers: AT17LV002A, AT17LV512A.
Please refer to the document for exact specifications by model.

Features

* DATASHEET
* EE Programmable Serial Memories Designed to Store Configuration Programs for Altera® FLEX® and APEX™ Field Programmable Gate Arrays (FPGA) ̶ 65,536 x 1-bit(1) ̶ 262,144 x 1-bit(1) ̶ 1,048,576 x 1-bit ̶ 131,072 x 1-bit(1) ̶ 524,288 x 1-bit ̶ 2,097,152 x 1-bit
* Supports

Applications

* In-System Programmable (ISP) via 2-wire Bus
* Simple Interface to SRAM FPGAs
* Compatible with the Atmel® AT6000, AT40K and AT94K Devices, Altera FLEX, APEX Devices, ORCA® FPGAs, Xilinx® XC3000, XC4000, XC5200, Spartan®, Virtex™ FPGAs, Motorola MPA1000 FPGAs
* Cascadable Read-back
