AT17LV002 Datasheet - ATMEL Corporation

AT17LV002, FPGA Configuration EEPROM Memory

Note 1.AT17LV65 and AT17LV128 are Not Recommended for New Designs (NRND) and are Replaced by AT17LV256.AT17LV65(1), AT17LV128(1), AT17LV256, AT17LV.

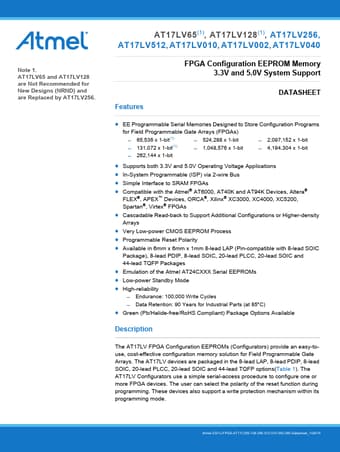

datasheet Preview Page 1 from Datasheet4u.com

AT17LV002_ATMELCorporation.pdf

AT17LV002 Datasheet Preview — Preview of AT17LV002 PDF

Datasheet Details

Part number:

AT17LV002

Manufacturer:

ATMEL Corporation

File Size:

415.11 KB

Description:

FPGA Configuration EEPROM Memory

Features

* DATASHEET
* EE Programmable Serial Memories Designed to Store Configuration Programs for Field Programmable Gate Arrays (FPGAs) ̶ 65,536 x 1-bit(1) ̶ 524,288 x 1-bit ̶ 2,097,152 x 1-bit ̶ 131,072 x 1-bit(1) ̶ 1,048,576 x 1-bit ̶ 4,194,304 x 1-bit ̶ 262,144 x 1-bit
* Supports both

Applications

* In-System Programmable (ISP) via 2-wire Bus
* Simple Interface to SRAM FPGAs
* Compatible with the Atmel® AT6000, AT40K and AT94K Devices, Altera® FLEX®, APEX™ Devices, ORCA®, Xilinx® XC3000, XC4000, XC5200, Spartan®, Virtex® FPGAs
* Cascadable Read-back to Support Additional Confi
