AT1741 Datasheet - Aimtron

AT1741 - 2-Channel PWM Controller

The AT1741 is 2-channel PWM switching regulator controllers that contains an on-chip 2.5V reference, two error amplifier, an adjustable oscillator, two dead-time comparators, undervoltage lockout circuitry and 2 common-emitter output.

It is idea for step-up, step-down, and inverting converter.

Bloc

AT1741 Features

* High-accuracy reference voltage circuit (±2%).

* Built-in short-circuit protection circuit.

* Built-in Undervoltage Lockout protection.

* Internal 2.5V Reference supply.

* Variable Dead time provides control over total Range. Applications

* LCD CCFL

AT1741-Aimtron.pdf

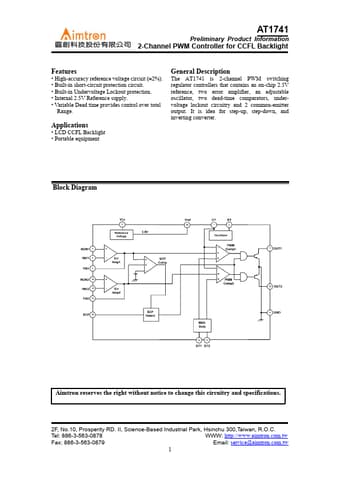

Preview of AT1741 PDF
AT1741 Datasheet Preview Page 2 AT1741 Datasheet Preview Page 3

Datasheet Details

Part number:

AT1741

Manufacturer:

Aimtron

File Size:

410.28 KB

Description:

2-channel pwm controller.
