AT1793

2-Channel Step-Down PWM Controller

AT1793 Features

* 4.75V to 26V supply voltage operating.

* Efficiency up to 85%.

* Typical frequency operation to 1MHz.

* Voltage-mode PWM step-down regulation.

* 1V±2% internal reference.

* Shutdown current less than 30uA.

* Soft-start built-in.

* Sho

AT1793 General Description

AT1793 is a voltage-mode PWM step-down controller capable of driving loads over a wide input supply range with excellent line and load regulation characteristics. High efficiency is obtained through the use of a low Rds(on) P-channel power switch. It uses a fixed switching frequency up to 1MHz thus .

AT1793 Datasheet (933.48 KB)

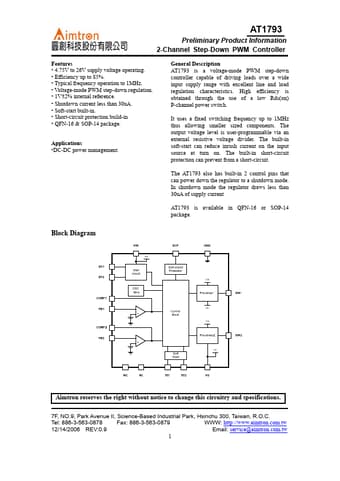

Preview of AT1793 PDF

Datasheet Details

Part number:

AT1793

Manufacturer:

Aimtron Technology

File Size:

933.48 KB

Description:

2-channel step-down pwm controller.
