AT17C128 Datasheet - ATMEL Corporation

AT17C128, FPGA Configuration EEPROM Memory

.
The AT17C65/128/256 and AT17LV65/128/256 (low-density AT17 Series) FPGA configuration EEPROMs (Configurators) provide an easy-to-use, cost-effective c.

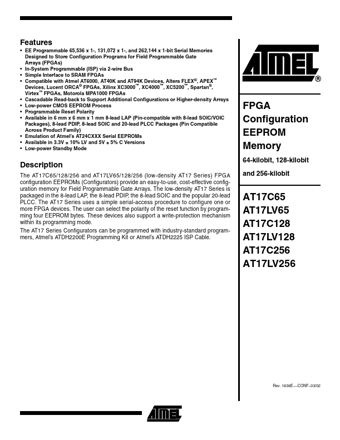

datasheet Preview Page 1 from Datasheet4u.com

AT17C128_ATMELCorporation.pdf

AT17C128 Datasheet Preview — Preview of AT17C128 PDF

Datasheet Details

Part number:

AT17C128

Manufacturer:

ATMEL Corporation

File Size:

266.39 KB

Description:

FPGA Configuration EEPROM Memory

Features

* EE Programmable 65,536 x 1-, 131,072 x 1-, and 262,144 x 1-bit Serial Memories Designed to Store Configuration Programs for Field Programmable Gate Arrays (FPGAs)
* In-System Programmable (ISP) via 2-wire Bus
* Simple Interface to SRAM FPGAs
* Compatible with Atmel

Applications

* RESET should be programmed active Low. This document describes the pin as RESET/OE. WP(1) I Write protect (WP) input (when CE is Low) during programming only (SER_EN Low). When WP is Low, the entire memory can be written. When WP is enabled (High), the lowest block of the memory cannot be writte
