AT1780 Datasheet, Controller, Aimtron Technology

AT1780 Features

  • Controller
  • 1.6A,0.21Ω,14V Power MOSFET
  • Operating input voltage:+2.6V to +5.5V
  • Adjustable Output from VIN to 12V
  • 640kHz /1.2MHz pin selectable switching Freq

PDF File Details

Part number:

AT1780

Manufacturer:

Aimtron Technology

File Size:

353.35kb

Download:

📄 Datasheet

Description:

Low-noise step-up current-mode pwm controller. The AT1780 is a current-mode step-up DC/DC converter with a 1.6A, 0.21Ω power MOSFET. The soft-start function is programmed with an e

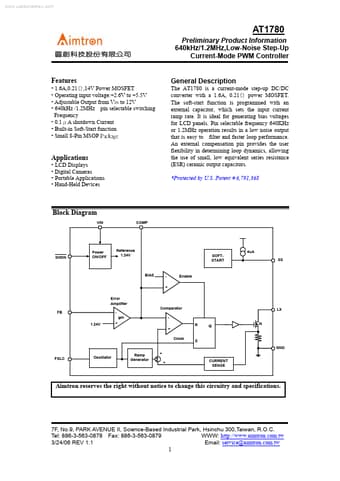

Datasheet Preview: AT1780 📥 Download PDF (353.35kb)
Page 2 of AT1780 Page 3 of AT1780

AT1780 Application

  • Applications
  • LCD Displays
  • Digital Cameras
  • Portable Applications
  • Hand-Held Devices Block Diagram VIN COMP S
