AT17C010A - FPGA Serial Configuration Memories

Product Overview

ATMEL Corporation

Datasheet Details

Part number	AT17C010A
Manufacturer	ATMEL Corporation
File Size	134.50 KB
Description	FPGA Serial Configuration Memories
Datasheet	AT17C010A Datasheet

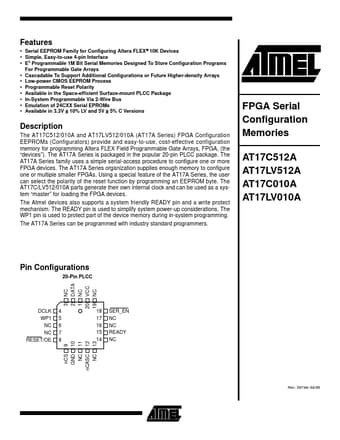

Additional preview pages of the AT17C010A datasheet.

Product details

Description

The AT17C512/010A and AT17LV512/010A (AT17A Series) FPGA Configuration EEPROMs (Configurators) provide and easy-to-use, cost-effective configuration memory for programming Altera FLEX Field Programmable Gate Arrays, FPGA, (the “devices”).

Features

Serial EEPROM Family for Configuring Altera FLEX® 10K Devices.
Simple, Easy-to-use 4-pin Interface.
E2 Programmable 1M Bit Serial Memories Designed To Store Configuration Programs.
For Programmable Gate Arrays Cascadable To Support Additional Configurations or Future Higher-density Arrays Low-power CMOS EEPROM Process Programmable Reset Polarity Available in the Space-efficient Surface-mount PLCC Pac.
