AT17C128A - FPGA Configuration EEPROM

Product Overview

ATMEL Corporation

Datasheet Details

Part number	AT17C128A
Manufacturer	ATMEL Corporation
File Size	158.38 KB
Description	FPGA Configuration EEPROM
Datasheet	AT17C128A Datasheet

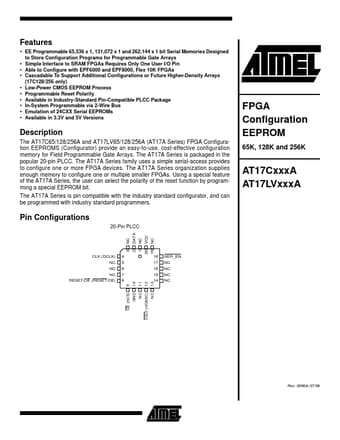

Additional preview pages of the AT17C128A datasheet.

Product details

Description

The AT17C65/128/256A and AT17LV65/128/256A (AT17A Series) FPGA Configuration EEPROMS (Configurator) provide an easy-to-use, cost-effective configuration memory for Field Programmable Gate Arrays.

Features

EE Programmable 65,536 x 1, 131,072 x 1 and 262,144 x 1 bit Serial Memories Designed to Store Configuration Programs for Programmable Gate Arrays.
Simple Interface to SRAM FPGAs Requires Only One User I/O Pin.
Able to Configure with EPF6000 and EPF8000, Flex 10K FPGAs.
Cascadable To Support Additional Configurations or Future Higher-Density Arrays (17C128/256 only).
Low-Power CMOS EEPROM Process.
Programmable Reset Polarity.
Availab.
