AT49BV001NT

1-megabit (128K x 8) Single 2.7-volt Battery-Voltage Flash Memory

AT49BV001NT Features

* Single Supply for Read and Write: 2.7 to 3.6V (BV), 3.0 to 3.6V (LV)

* Fast Read Access Time

* 70 ns

* Internal Program Control and Timer

* Sector Architecture

* One 16-Kbyte Boot Block with Programming Lockout

* Two 8-Kbyte Parameter Blocks

AT49BV001NT General Description

The AT49BV/LV001(N)(T) is a 3-volt-only in-system reprogrammable Flash memory. Its 1 megabit of memory is organized as 131,072 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 70 ns with power dissipation of just 90 mW over the commer.

AT49BV001NT Datasheet (383.49 KB)

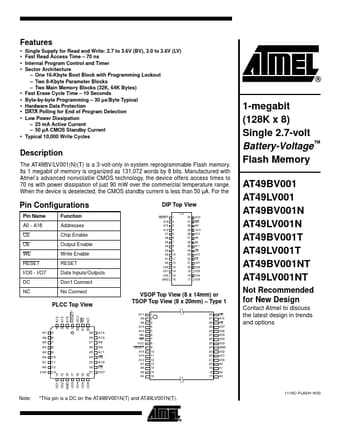

Preview of AT49BV001NT PDF

Datasheet Details

Part number:

AT49BV001NT

Manufacturer:

ATMEL

File Size:

383.49 KB

Description:

1-megabit (128k x 8) single 2.7-volt battery-voltage flash memory.
