AT90PWM161 Datasheet - ATMEL

AT90PWM161 8-bit Microcontroller

MNEMONIC GND AGND VCC AVCC AREF CLKO RESET# OCD XTAL1 XTAL2 NAME, FUNCTION & ALTERNATE FUNCTION Ground: 0V reference Analog Ground: 0V reference for analog part Power Supply Analog Power Supply: This is the power supply voltage for analog part For a normal use this pin must be connected. Analog R.

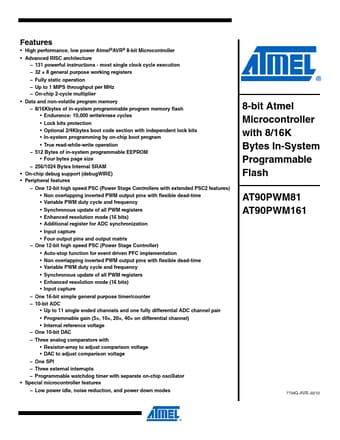

AT90PWM161 Features

* High performance, low power Atmel®AVR® 8-bit Microcontroller

* Advanced RISC architecture

* 131 powerful instructions - most single clock cycle execution

* 32 × 8 general purpose working registers

* Fully static operation

* Up to 1 MIPS throughput pe
