AT90LS8535 - 8-bit Microcontroller

Product Overview

ATMEL

Part number	AT90LS8535
Manufacturer	ATMEL
File Size	1.67 MB
Description	8-bit Microcontroller
Datasheet	AT90LS8535 Datasheet
Note	This datasheet PDF includes multiple part numbers: AT90LS8535, AT90S8535. Please refer to the document for exact specifications by model.

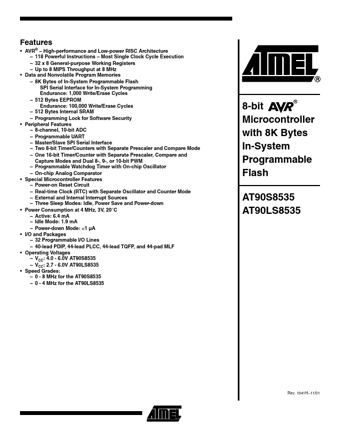

Additional preview pages of the AT90LS8535 datasheet.

AVR®.
High-performance and Low-power RISC Architecture.
118 Powerful Instructions.
Most Single Clock Cycle Execution.
32 x 8 General-purpose Working Registers.
Up to 8 MIPS Throughput at 8 MHz.
Data and Nonvolatile Program Memories.
8K Bytes of In-System Programmable Flash SPI Serial Interface for In-System Programming Endurance: 1,000 Write/Erase Cycles.
512 Bytes EEPROM Endurance: 100,000 Write/Erase Cycles.
