(T1) PD5 9 (AIN0) PD6 10 (AIN1) PD7 11
(ICP) PB0 12 (OC1) PB1 13
(SS) PB2 14 (MOS1) PB3 15 (MOS0) PB4 16

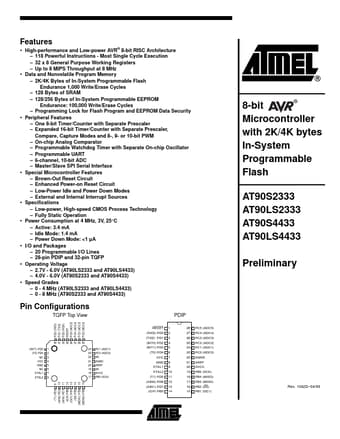

Features
• High-performance and Low-power AVR® 8-bit RISC Architecture – 118 Powerful Instructions - Most Single Cycle Execution – 32 x 8 General Purpose Working Registers – Up to 8 MIPS Throughput at 8 MHz
• Data and Nonvolatile Program Memory – 2K/4K Bytes of In-System Programmable Flash Endurance 1,000 Write/Erase Cycles – 128 Bytes of SRAM – 128/256 Bytes of In-System Programmable EEPROM Endurance: 100,000 Write/Erase Cycles – Programming Lock for Flash Program and EEPROM Data Security
• Peripheral Features – One 8-bit Timer/Counter with Separate Prescaler – Expanded 16-bit Timer/Counter with Separate Prescaler, Compare, Capture Modes and 8-, 9- or 10-bit PWM – On-chip Analog Compa
