AT90CAN128 Datasheet PDF - ATMEL Corporation 8-bit Microcontroller Specs

AT90CAN128 - 8-bit Microcontroller

Datasheet Summary

Description

AT90CAN32, AT90CAN64 and AT90CAN128 are hardware and software compatible.

They differ only in memory sizes as shown in Table 1-1.

Table 1-1.

Features

High-performance, Low-power AVR® 8-bit Microcontroller.
Advanced RISC Architecture.
133 Powerful Instructions.
Most Single Clock Cycle Execution.
32 x 8 General Purpose Working Registers + Peripheral Control Registers.
Fully Static Operation.
Up to 16 MIPS Throughput at 16 MHz.
On-chip 2-cycle Multiplier.
Non volatile Program and Data Memories.
32K/64K/128K Bytes of In-System Reprogrammable Flash (AT90CAN3.

Datasheet Details

Part number	AT90CAN128
Manufacturer	ATMEL Corporation
File Size	2.49 MB
Description	8-bit Microcontroller
Datasheet	AT90CAN128 Datasheet

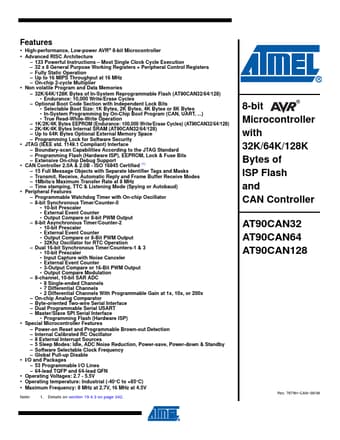

Additional preview pages of the AT90CAN128 datasheet.

📁 Similar Datasheet

AT90-0001 - Digital Attenuator/ 31.0 dB/ 5-Bit/ TTL Driver/ DC-6.0 GHz (Tyco Electronics)

AT90-0106 - Digital Attenuator/ 50 dB/ 6-Bit/ TTL Driver/ DC-2.4 GHz (Tyco Electronics)

AT90-0107 - Digital Attenuator/ 31.5 dB/ 6-Bit/ TTL Driver/ DC-4.0 GHz (Tyco Electronics)

AT90-0233 - Digital Attenuator/ 30 dB/ 4-Bit/ TTL Driver/ DC - 2.5 GHz (Tyco Electronics)

AT90-0263 - Digital Attenuator/ 31 dB/ 5-Bit/ TTL Driver/ DC-4.0 GHz (Tyco Electronics)

AT90-0283 - Digital Attenuator/ 15.5 dB/ 5-Bit/ TTL Driver/ DC-3.5 GHz (Tyco Electronics)

AT90-0413 - Digital Attenuator/ 15 dB/ 4-Bit/ TTL Driver/ DC - 4.0 GHz (Tyco Electronics)

AT90-1106 - Digital Attenuator/ 50 dB/ 6-Bit/ TTL Driver/ DC-2.4 GHz (Tyco Electronics)

AT90-1107 - Digital Attenuator/ 31.5 dB/ 6-Bit/ TTL Driver/ DC-4.0 GHz (Tyco Electronics)

AT90-1233 - Digital Attenuator/ 30 dB/ 4-Bit/ TTL Driver/ DC - 2.5 GHz (Tyco Electronics)

Full PDF Text Transcription

Click to expand full text

Features • High-performance, Low-power AVR® 8-bit Microcontroller • Advanced RISC Architecture – 133 Powerful Instructions – Most Single Clock Cycle Execution – 32 x 8 General Purpose Working Registers + Peripheral Control Registers – Fully Static Operation – Up to 16 MIPS Throughput at 16 MHz – On-chip 2-cycle Multiplier • Non volatile Program and Data Memories – 32K/64K/128K Bytes of In-System Reprogrammable Flash (AT90CAN32/64/128) • Endurance: 10,000 Write/Erase Cycles – Optional Boot Code Section with Independent Lock Bits • Selectable Boot Size: 1K Bytes, 2K Bytes, 4K Bytes or 8K Bytes • In-System Programming by On-Chip Boot Program (CAN, UART, ...

Published: Mar 23, 2005 |
