AT90-0263 - Digital Attenuator/ 31 dB/ 5-Bit/ TTL Driver/ DC-4.0 GHz

Product Overview

Tyco Electronics

📥 Download Datasheet

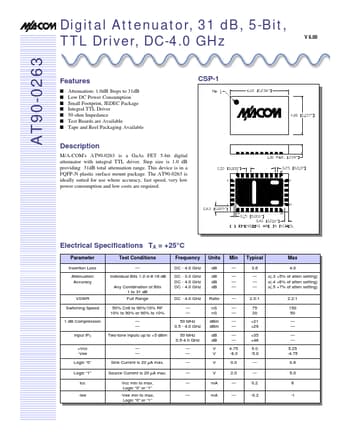

AT90-0263 Digital Attenuator/ 31 dB/ 5-Bit/ TTL Driver/ DC-4.0 GHz by Tyco Electronics - Datasheet Preview — Datasheet preview – AT90-0263

Datasheet Details

Part number	AT90-0263
Manufacturer	Tyco Electronics
File Size	268.57 KB
Description	Digital Attenuator/ 31 dB/ 5-Bit/ TTL Driver/ DC-4.0 GHz
Datasheet	AT90-0263 Datasheet
Additional preview pages of the AT90-0263 datasheet.

Product details

Description

M/A-COM's AT90-0263 is a GaAs FET 5-bit digital attenuator with integral TTL driver. Individual Bits 1-2-4-8-16 dB Any Combination of Bits 1 to 31 dB

Features

n n n n n n n CSP-1 Attenuation: 1.0dB Steps to 31dB Low DC Power Consumption Small Footprint, JEDEC Package Integral TTL Driver 50 ohm Impedance Test Boards are Available Tape and Reel Packaging Available.
