AT90-0106 - Digital Attenuator/ 50 dB/ 6-Bit/ TTL Driver/ DC-2.4 GHz

Datasheet Summary

Description

M/A-COM's AT90-0106 is a GaAs FET 6-bit digital attenuator with integral TTL driver.

Step size is 1 dB providing a 50 dB total attenuation range.

This device is in a FQFP-N plastic surface mount package.

Features

n n n n n n n CSP-1 Attenuation: 1 dB Steps to 50 dB Low DC Power Consumption Small Footprint, JEDEC Package Integral TTL Driver 50 ohm Impedance Test Boards are Available Tape and Reel Packaging Available.

Tyco Electronics

📥 Download Datasheet

Datasheet Details

Part number	AT90-0106
Manufacturer	Tyco Electronics
File Size	279.16 KB
Description	Digital Attenuator/ 50 dB/ 6-Bit/ TTL Driver/ DC-2.4 GHz
Datasheet	AT90-0106 Datasheet
Additional preview pages of the AT90-0106 datasheet.

📁 Similar Datasheet

AT90C8515 - 8-Bit Microcontroller (ATMEL Corporation)
AT90C8534 - Microcontroller (ATMEL Corporation)
AT90CAN128 - 8-bit Microcontroller (ATMEL Corporation)
AT90CAN32 - 8-bit Microcontroller (ATMEL Corporation)
AT90CAN64 - 8-bit Microcontroller (ATMEL Corporation)
AT90LS2333 - 8-bit Microcontroller (ATMEL Corporation)
AT90LS4433 - 8-Bit Microcontroller (ATMEL Corporation)
AT90LS4434 - 8-bit Microcontroller (ATMEL)
AT90LS8535 - 8-bit Microcontroller (ATMEL)
AT90PWM1 - 8-bit Microcontroller (ATMEL Corporation)

Other Datasheets by Tyco Electronics

AT90-0107 - Digital Attenuator/ 31.5 dB/ 6-Bit/ TTL Driver/ DC-4.0 GHz
AT90-0001 - Digital Attenuator/ 31.0 dB/ 5-Bit/ TTL Driver/ DC-6.0 GHz
AT90-0233 - Digital Attenuator/ 30 dB/ 4-Bit/ TTL Driver/ DC - 2.5 GHz
AT90-0263 - Digital Attenuator/ 31 dB/ 5-Bit/ TTL Driver/ DC-4.0 GHz
AT90-0283 - Digital Attenuator/ 15.5 dB/ 5-Bit/ TTL Driver/ DC-3.5 GHz
AT90-0413 - Digital Attenuator/ 15 dB/ 4-Bit/ TTL Driver/ DC - 4.0 GHz
AT90-1106 - Digital Attenuator/ 50 dB/ 6-Bit/ TTL Driver/ DC-2.4 GHz
AT90-1107 - Digital Attenuator/ 31.5 dB/ 6-Bit/ TTL Driver/ DC-4.0 GHz

Full PDF Text Transcription

Click to expand full text

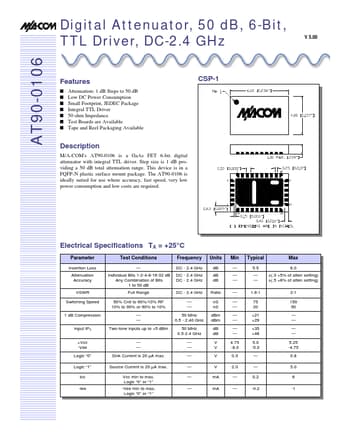

Digital Attenuator, 50 dB, 6-Bit, TTL Driver, DC-2.4 GHz V 5.00 AT90-0106 Features n n n n n n n CSP-1 Attenuation: 1 dB Steps to 50 dB Low DC Power Consumption Small Footprint, JEDEC Package Integral TTL Driver 50 ohm Impedance Test Boards are Available Tape and Reel Packaging Available Description M/A-COM's AT90-0106 is a GaAs FET 6-bit digital attenuator with integral TTL driver. Step size is 1 dB providing a 50 dB total attenuation range. This device is in a FQFP-N plastic surface mount package. The AT90-0106 is ideally suited for use where accuracy, fast speed, very low power consumption and low costs are required.

Published: Mar 23, 2005 |
