AT90-0233 - Digital Attenuator/ 30 dB/ 4-Bit/ TTL Driver/ DC - 2.5 GHz

Datasheet Summary

Description

M/A-COM’s AT90-0233 is a GaAs FET 4-Bit digital attenuator with integral driver.

Step size is 2 dB providing a 30 dB attenuation range.

This device is in an FQFP-N plastic surface mount package.

Features

  • n Attenuation: 2 dB Steps to 30 dB n Low DC Power Consumption n Small Footprint, JEDEC Package n Integral TTL Driver n 50 Ohm Impedance n Test Boards Available n Tape and Reel Packaging Available CSP-1.

📥 Download Datasheet

Datasheet preview – AT90-0233

Datasheet Details

Part number AT90-0233
Manufacturer Tyco Electronics
File Size 251.86 KB
Description Digital Attenuator/ 30 dB/ 4-Bit/ TTL Driver/ DC - 2.5 GHz
Datasheet download datasheet AT90-0233 Datasheet
Additional preview pages of the AT90-0233 datasheet.

📁 Similar Datasheet

  • AT90C8515 - 8-Bit Microcontroller (ATMEL Corporation)
  • AT90C8534 - Microcontroller (ATMEL Corporation)
  • AT90CAN128 - 8-bit Microcontroller (ATMEL Corporation)
  • AT90CAN32 - 8-bit Microcontroller (ATMEL Corporation)
  • AT90CAN64 - 8-bit Microcontroller (ATMEL Corporation)
  • AT90LS2333 - 8-bit Microcontroller (ATMEL Corporation)
  • AT90LS4433 - 8-Bit Microcontroller (ATMEL Corporation)
  • AT90LS4434 - 8-bit Microcontroller (ATMEL)
  • AT90LS8535 - 8-bit Microcontroller (ATMEL)
  • AT90PWM1 - 8-bit Microcontroller (ATMEL Corporation)
Other Datasheets by Tyco Electronics
  • AT90-0263 - Digital Attenuator/ 31 dB/ 5-Bit/ TTL Driver/ DC-4.0 GHz
  • AT90-0283 - Digital Attenuator/ 15.5 dB/ 5-Bit/ TTL Driver/ DC-3.5 GHz
  • AT90-0001 - Digital Attenuator/ 31.0 dB/ 5-Bit/ TTL Driver/ DC-6.0 GHz
  • AT90-0106 - Digital Attenuator/ 50 dB/ 6-Bit/ TTL Driver/ DC-2.4 GHz
  • AT90-0107 - Digital Attenuator/ 31.5 dB/ 6-Bit/ TTL Driver/ DC-4.0 GHz
  • AT90-0413 - Digital Attenuator/ 15 dB/ 4-Bit/ TTL Driver/ DC - 4.0 GHz
  • AT90-1106 - Digital Attenuator/ 50 dB/ 6-Bit/ TTL Driver/ DC-2.4 GHz
  • AT90-1107 - Digital Attenuator/ 31.5 dB/ 6-Bit/ TTL Driver/ DC-4.0 GHz

Full PDF Text Transcription

Click to expand full text

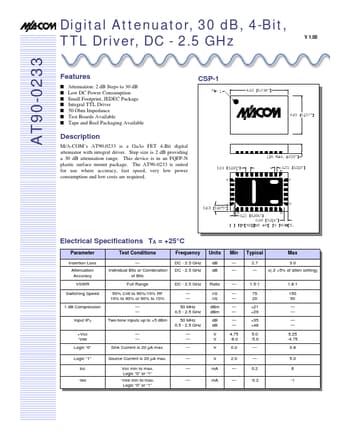

Digital Attenuator, 30 dB, 4-Bit, TTL Driver, DC - 2.5 GHz V 1.00 AT90-0233 Features n Attenuation: 2 dB Steps to 30 dB n Low DC Power Consumption n Small Footprint, JEDEC Package n Integral TTL Driver n 50 Ohm Impedance n Test Boards Available n Tape and Reel Packaging Available CSP-1 Description M/A-COM’s AT90-0233 is a GaAs FET 4-Bit digital attenuator with integral driver. Step size is 2 dB providing a 30 dB attenuation range. This device is in an FQFP-N plastic surface mount package. The AT90-0233 is suited for use where accuracy, fast speed, very low power consumption and low costs are required.
