AT90C8534

Microcontroller

AT90C8534 Features

* Utilizes the AVR® RISC Architecture

* AVR

* High-performance and Low-power RISC Architecture

* 118 Powerful Instructions

* Most Single Clock Cycle Execution

* 32 x 8 General-purpose Working Registers

* Up to 1.5 MIPS Throughput at 1.5 MHz Dat

AT90C8534 General Description

The AT90C8534 is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture. By executing powerful instructions in a single clock cycle, the Pin Configuration 48 47 46 45 44 43 42 41 40 39 38 37 NC PA0 PA1 PA2 PA3 NC NC NC NC PA4 PA5 NC (continued) ADIN0 NC NC NC NC NC NC NC NC NC .

AT90C8534 Datasheet (802.72 KB)

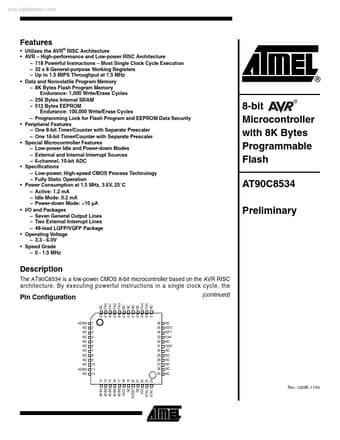

Preview of AT90C8534 PDF

Datasheet Details

Part number:

AT90C8534

Manufacturer:

ATMEL Corporation

File Size:

802.72 KB

Description:

Microcontroller.
