ATF1500ABV - High-performance EE PLD

Datasheet Summary

Features

  • Operates between 3.0V to 5.25V.
  • High-density, High-performance Electrically-erasable Complex Programmable Logic Device.
  • 44-pin, 32 I/O CPLD.
  • 100% connected.
  • 12 ns Maximum Pin-to-pin Delay.
  • Registered Operation up to 90.9 MHz.
  • Fully Connected Input and Feedback Logic Array.
  • Flexible Logic Macrocell.
  • D/T/Latch Configurable Flip-flops.
  • Global and Individual Register Control Signals.
  • Global and Indivi.

📥 Download Datasheet

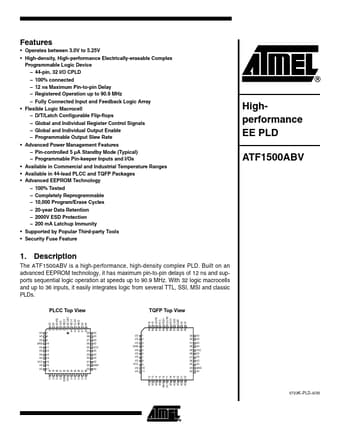

Datasheet preview – ATF1500ABV
