ATF1500AL - High-performance EPLD

Product Overview

ATMEL

📥 Download Datasheet

ATF1500AL High-performance EPLD by ATMEL - Datasheet Preview — Datasheet preview – ATF1500AL

Datasheet Details

Part number	ATF1500AL
Manufacturer	ATMEL
File Size	464.46 KB
Description	High-performance EPLD
Datasheet	ATF1500AL Datasheet
Note	This datasheet PDF includes multiple part numbers: ATF1500AL, ATF1500A. Please refer to the document for exact specifications by model.

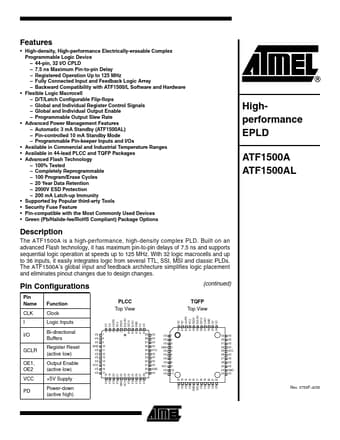

Additional preview pages of the ATF1500AL datasheet.

Product details

Features

High-density, High-performance Electrically-erasable Complex Programmable Logic Device.
44-pin, 32 I/O CPLD.
7.5 ns Maximum Pin-to-pin Delay.
Registered Operation Up to 125 MHz.
Fully Connected Input and Feedback Logic Array.
Backward Compatibility with ATF1500/L Software and Hardware.
Flexible Logic Macrocell.
D/T/Latch Configurable Flip-flops.
Global and Individual Register Control Signals.
Global and In.
