ATF1502AS

High-performance EEPROM

ATF1502AS Features

* High-density, High-performance, Electrically-erasable Complex Programmable Logic Device ̶ 32 Macrocells ̶ 5 Product Terms per Macrocell, Expandable up to 40 per Macrocell ̶ 44 Pins ̶ 7.5ns Maximum Pin-to-pin Delay ̶ Registered Operation up to 125MHz ̶ Enhanced Routing Resources

* In-System

ATF1502AS General Description

The Atmel® ATF1502AS(L) is a high-performance, high-density Complex Programmable Logic Device (CPLD) which utilizes the Atmel proven electrically-erasable technology. With 32 logic macrocells and up to 36 inputs, it easily integrates logic from several TTL, SSI, MSI, LSI, and classic PLDs. The ATF15.

ATF1502AS Datasheet (945.49 KB)

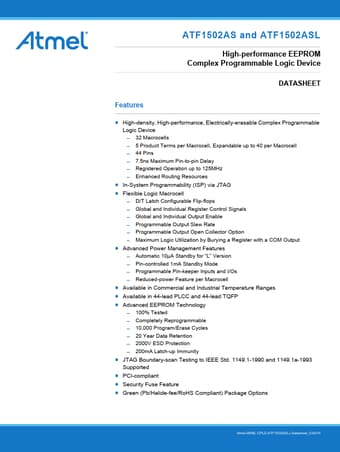

Preview of ATF1502AS PDF

Datasheet Details

Part number:

ATF1502AS

Manufacturer:

ATMEL

File Size:

945.49 KB

Description:

High-performance eeprom.
