SAMR21E - Wireless Microcontroller

SAMR21E Description

SMART Atmel SAM R21E / SAM R21G SMART ARM-Based Wireless Microcontroller DATASHEET .
The Atmel® | SMART™ SAM R21 is a series of low-power microcontrollers using the 32-bit ARM® Cortex®-M0+ processor and an integrated ultra-low power 2.

SAMR21E Features

* In-system programmable Flash, optional 512KB serial Flash,12-channel direct memory access (DMA) controller, 12-channel Event System, programmable interrupt controller, up to 28 programmable I/O pins, ultra-low power 2.4GHz ISM band transceiver with a data rate of 250kb/s, 32-bit real-time clock and

SAMR21E Applications

* The series provide one full-speed USB 2.0 embedded host and device interface; up to five Serial Communication Modules (SERCOM) that each can be configured to act as an USART, UART, SPI, I2C up 3.4MHz and LIN slave; up to eight channel 350ksps 12-bit ADC with programmable gain and optional oversampl

📥 Download Datasheet

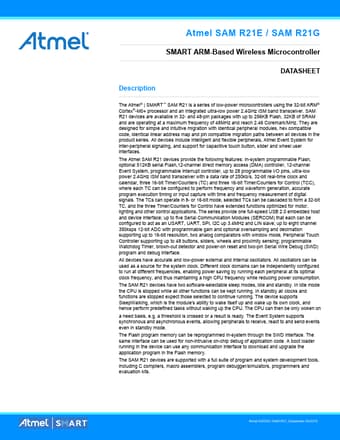

Preview of SAMR21E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SAMR21E
Manufacturer
ATMEL
File Size
7.74 MB
Datasheet
SAMR21E-ATMEL.pdf
Description
Wireless Microcontroller
