TS81102G0 - Monolithic 10-bit high-speed (up to 2 GHz) demultiplexor

TS81102G0 Description

.
The TS81102G0 is a monolithic 10-bit high-speed (up to 2 GHz) demultiplexor, designed to run with all kinds of ADCs and more specifically with Atmel’s.

TS81102G0 Features

* Programmable DMUX Ratio:
* 1:4: Data Rate Max = 1 Gsps
* PD (8b/10b) < 4.3/4.7 W (ECL 50Ω output)
* 1:8: Data Rate Max = 2 Gsps
* PD (8b/10b) < 6/6.9 W (ECL 50Ω output)
* 1:16 with 1 TS8388B or 1 TS83102G0B and 2 DMUX
* Parallel Output Mode

TS81102G0 Applications

* Stand-alone Delay Adjust Cell for ADCs Sampling Instant Alignment
* Differential Data Ready Output
* Built-in Self Test (BIST)
* Dual Power Supply VEE = -5V, VCC = +5V
* Radiation Tolerance Oriented Design (More than 100 Krad (Si) Expected)
* TBGA 2

📥 Download Datasheet

Preview of TS81102G0 PDF

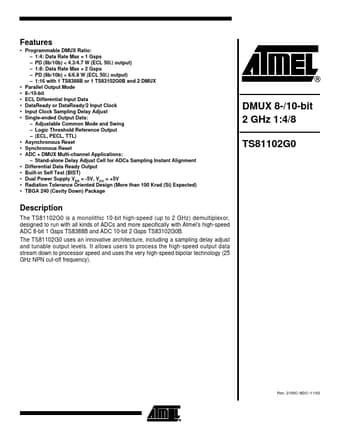

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TS81102G0
Manufacturer
ATMEL
File Size
319.53 KB
Datasheet
TS81102G0-ATMEL.pdf
Description
Monolithic 10-bit high-speed (up to 2 GHz) demultiplexor
