TS81001

High Efficiency Receiver Controller

TS81001 Features

* Supports Qi®, PMA and proprietary charging applications

* Dual-mode Qi + PMA functionality using a single LC reso- nant circuit

* Wireless power systems up to 40W+

* Compatible with variable voltage, variable frequency and variable duty cycle transmitters

TS81001 General Description

Description The TS81001 is a power receiver communications and control unit for wireless charging applications. The TS81001 can support systems up to 40W+, and supports Qi® compliant, PMA compliant and proprietary applications. The TS81001 performs the necessary coding of packets to send commands t.

TS81001 Datasheet (1.26 MB)

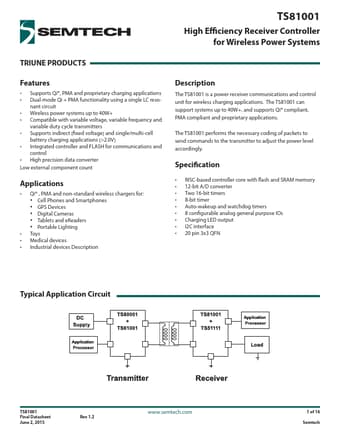

Preview of TS81001 PDF

Datasheet Details

Part number:

TS81001

Manufacturer:

Semtech

File Size:

1.26 MB

Description:

High efficiency receiver controller.
