2SC5343E, NPN TRANSISTOR

Semiconductor 2SC5343E NPN Silicon Transistor .
General small signal amplifier Features. Low collector saturation voltage : VCE(sat)=0. Low output capacitance.

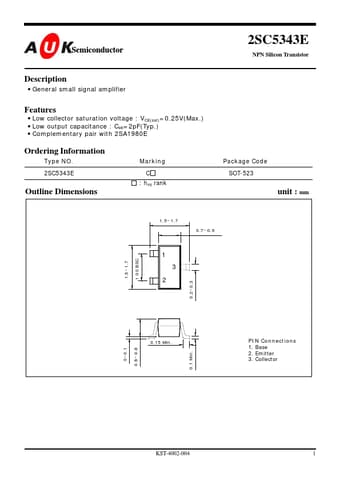

datasheet Preview Page 1 from Datasheet4u.com

2SC5343E_AUKcorp.pdf

2SC5343E Datasheet Preview — Preview of 2SC5343E PDF

Datasheet Details

Part number:

2SC5343E

Manufacturer:

AUK corp

File Size:

94.83 KB

Description:

NPN TRANSISTOR

Features

* Low collector saturation voltage : VCE(sat)=0.25V(Max. )
* Low output capacitance : Cob=2pF(Typ. )
* Complementary pair with 2SA1980E Ordering Information Type NO. 2SC5343E Marking C : hFE rank Package Code SOT-523 Outline Dimensions unit : mm 1.5~1.7 0.7~0.9 1 1.00 BSC
