BC847U - NPN Silicon Transistor

Datasheet Summary

Description

General purpose application Switching application

Features

  • High voltage : VCEO=45V.

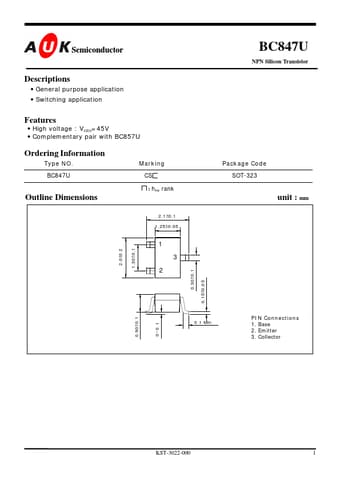

  • Complementary pair with BC857U Ordering Information Type NO. BC847U Marking CS Package Code SOT-323 : hFE rank Outline Dimensions 2.1±0.1 1.25±0.05 unit : mm 1 1.30±0.1 2.0±0.2 3 0.30±0.1 2 0.15±0.05 0~0.1 0.1 Min. PIN Connections 1. Base 2. Emitter 3. Collector 0.90±0.1 KST-3022-000 1 BC847U Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emitter voltage Emitter-base voltage Collector current Collector dissipat.

📥 Download Datasheet

Datasheet preview – BC847U

Datasheet Details

Part number BC847U
Manufacturer AUK corp
File Size 86.51 KB
Description NPN Silicon Transistor
Datasheet download datasheet BC847U Datasheet
