Datasheet Details
- Part number
- EMK316BJ225ML
- Manufacturer
- AUK corp
- File Size
- 365.24 KB
- Datasheet
- EMK316BJ225ML_AUKcorp.pdf
- Description
- Low Drop Output Voltage Regulator

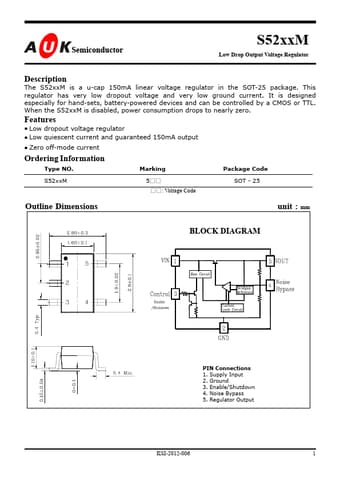

EMK316BJ225ML Description
Semiconductor S52xxM Low Drop Output Voltage Regulator .
The S52xxM is a u-cap 150mA linear voltage regulator in the SOT-25 package.
EMK316BJ225ML Features
* Low dropout voltage regulator
* Low quiescent current and guaranteed 150mA output
* Zero off-mode current
Ordering Information
Type NO. S52xxM Marking 5
* : Voltage Code Package Code SOT - 25
Outline Dimensions
BLOCK DIAGRAM
unit :
mm
EMK316BJ225ML Applications
* KSI-2012-006
5
Low-Noise Operation :CN=470pF, CL≥4.7uF Basic Operation :CN= not used, CL≥1uF 3
S52xxM
Electrical Characteristic Curves
Fig. 1. Fig. 2
Fig. 3.
Fig. 4
Fig.5
Fig.6.
KSI-2012-006
4
S52xxM
Electrical Characteristic Curves (Cont. )
Fig. 7. Fig. 8
Shutdown (Dis/Enable) Operation
T
