S1117-XXD - Adjustable and Fixed LDO Voltage Regulator

AUK corp

The S1117-XXD by AUK corp is a Adjustable and Fixed LDO Voltage Regulator. Below is the official datasheet preview.

📥 Download Datasheet

S1117-XXD Adjustable and Fixed LDO Voltage Regulator by AUK corp - Datasheet Preview — Official preview page of the **S1117-XXD** Adjustable and Fixed LDO Voltage Regulator datasheet (AUK corp).

Datasheet Details

Part number	S1117-XXD
Manufacturer	AUK corp
File Size	404.71 KB
Description	Adjustable and Fixed LDO Voltage Regulator
Datasheet	S1117-XXD_AUKcorp.pdf

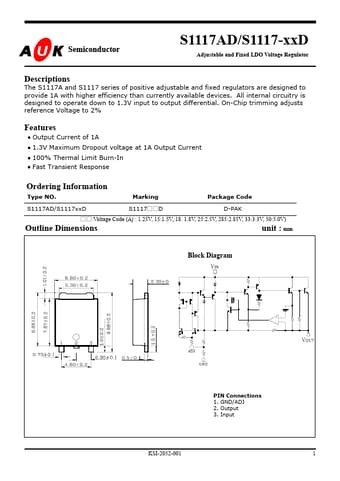

Additional preview pages of the S1117-XXD datasheet.

S1117-XXD Product details

Description

The S1117A and S1117 series of positive adjustable and fixed regulators are designed to provide 1A with higher efficiency than currently available devices.

Features

Output Current of 1A.
1.3V Maximum Dropout voltage at 1A Output Current.
100% Thermal Limit Burn-In.
Fast Transient Response Ordering Information Type NO. S1117AD/S1117xxD Marking S1117.
D Package Code D-PAK.
:Voltage Code (Aj : 1.25V, 15:1.5V,:18: 1.8V, 25:2.5V, 285:2.85V, 33:3.3V, 50:5.0V) Outline Dimensions Block Diagram unit : mm PIN Connections 1. GND/ADJ 2. Output 3. Input KSI-2052-001 1 S1117AD/S1117-xxD Absolut.
