S1117-XXPI Fixed LDO Voltage Regulator

S1117-XXPI Description

Semiconductor S1117-xxPI Fixed LDO Voltage Regulator .
The S1117 series of positive fixed regulators are designed to provide 1A with higher efficiency than currently available devices.

S1117-XXPI Features

* Output Current of 1A
* 1.3V Maximum Dropout voltage at 1A Output Current
* 100% Thermal Limit Burn-In
* Fast Transient Response Ordering Information Type NO. S1117xxPI Marking S1117
* PI Package Code TO-220F
* :Voltage Code (15:1.5V,

📥 Download Datasheet

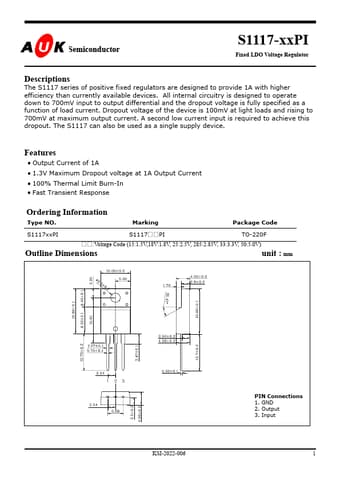

Preview of S1117-XXPI PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S1117-XXPI
Manufacturer
AUK corp
File Size
353.90 KB
Datasheet
S1117-XXPI_AUKcorp.pdf
Description
Fixed LDO Voltage Regulator
