S1117A

Adjustable and Fixed LDO Voltage Regulator

S1117A Features

* Output Current of 1A

* 1.3V Maximum Dropout voltage at 1A Output Current

* 100% Thermal Limit Burn-In

* Fast Transient Response Ordering Information Type NO. S1117AD/S1117xxD Marking S1117

* D Package Code D-PAK

* :Voltage Code (Aj :

S1117A General Description

The S1117A and S1117 series of positive adjustable and fixed regulators are designed to provide 1A with higher efficiency than currently available devices. All internal circuitry is designed to operate down to 1.3V input to output differential. On-Chip trimming adjusts reference Voltage to 2% Feat.

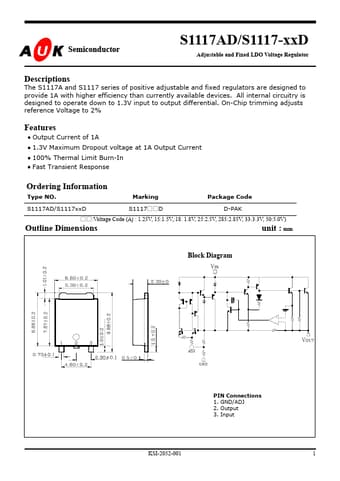

S1117A Datasheet (404.71 KB)

Preview of S1117A PDF

Datasheet Details

Part number:

S1117A

Manufacturer:

AUK corp

File Size:

404.71 KB

Description:

Adjustable and fixed ldo voltage regulator.
