S1117APIC

Adjustable and Fixed LDO Voltage Regulator

AUK corp

Download Datasheet (417.12 KB)

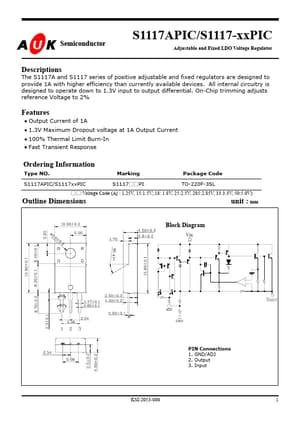

S1117APIC Datasheet Preview — Preview of S1117APIC PDF Datasheet

Datasheet Details

Part number:

S1117APIC

Manufacturer:

AUK corp

File Size:

417.12 KB

Description:

Adjustable and fixed ldo voltage regulator.
Semiconductor S1117APIC/S1117-xxPIC Adjustable and Fixed LDO Voltage Regulator Descriptions The S1.
The S1117A and S1117 series of positive adjustable and fixed regulators are designed to provide 1A .

✔ S1117APIC Features

Output Current of 1A
1.3V Maximum Dropout voltage at 1A Output Current
100% Thermal Limit Burn-In
Fast Transient Response Ordering Information Type NO. S1117APIC

✔ S1117APIC Application

Ω Ω × KSI-2053-000 3 S1117APC/S1117-xxPIC Electrical Characteristic Curves Fig. 1 Minimum Load Current
