S3001 - 5CH Motor Drive IC

Product Overview

AUK

S3001 5CH Motor Drive IC by AUK - Datasheet Preview — Datasheet preview – S3001

Datasheet Details

Part number	S3001
Manufacturer	AUK
File Size	800.08 KB
Description	5CH Motor Drive IC
Datasheet	S3001 Datasheet

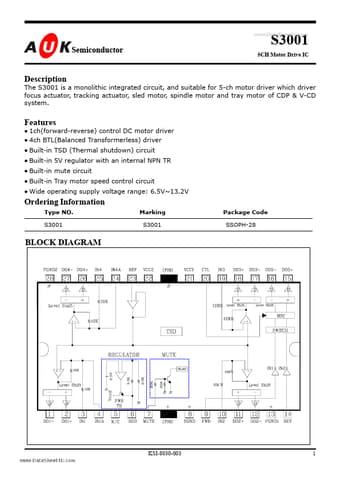

Additional preview pages of the S3001 datasheet.

Product details

Description

The S3001 is a monolithic integrated circuit, and suitable for 5-ch motor driver which driver focus actuator, tracking actuator, sled motor, spindle motor and tray motor of CDP & V-CD system.

Features

1ch(forward-reverse) control DC motor driver.
4ch BTL(Balanced Transformerless) driver.
Built-in TSD (Thermal shutdown) circuit.
Built-in 5V regulator with an internal NPN TR.
Built-in mute circuit.
Built-in Tray motor speed control circuit.
Wide operating supply voltage range: 6.5V~13.2V Ordering Information Type NO. S3001 Marking S3001 Package Code SSOPH-28 BLOCK.
