S30011 - 5CH Motor Drive IC

Product Overview

AUK

S30011 5CH Motor Drive IC by AUK - Datasheet Preview — Datasheet preview – S30011

Datasheet Details

Part number	S30011
Manufacturer	AUK
File Size	791.54 KB
Description	5CH Motor Drive IC
Datasheet	S30011 Datasheet
Additional preview pages of the S30011 datasheet.

Product details

Description

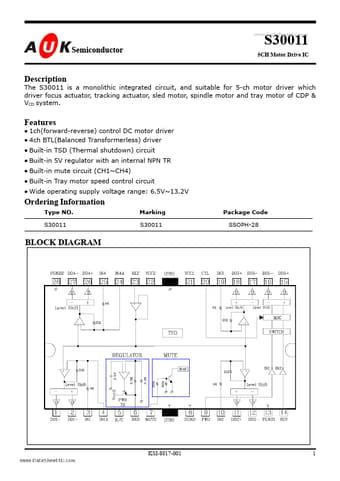

The S30011 is a monolithic integrated circuit, and suitable for 5-ch motor driver which driver focus actuator, tracking actuator, sled motor, spindle motor and tray motor of CDP & VCD system.

Features

1ch(forward-reverse) control DC motor driver.
4ch BTL(Balanced Transformerless) driver.
Built-in TSD (Thermal shutdown) circuit.
Built-in 5V regulator with an internal NPN TR.
Built-in mute circuit (CH1~CH4).
Built-in Tray motor speed control circuit.
Wide operating supply voltage range: 6.5V~13.2V Ordering Information Type NO. S30011 Marking S30011 Package Code SSOPH-28 BLOCK.
