S5225M Datasheet - AUK

S5225M - Low Drop Output Voltage Regulator

The S52xxM is a u-cap 150mA linear voltage regulator in the SOT-25 package.

This regulator has very low dropout voltage and very low ground current.

It is designed especially for hand-sets, battery-powered devices and can be controlled by a CMOS or TTL.

When the S52xxM is disabled, power consumption

S5225M Features

* Output www.DataSheet4U.com current of 150 ㎃

* Low quiescent current

* Low dropout voltage

* Current limit protection

* Logic-controlled electronic enable Ordering Information Type NO. S52xxM Marking 5

* : Voltage Code Packa

S5225M_AUK.pdf

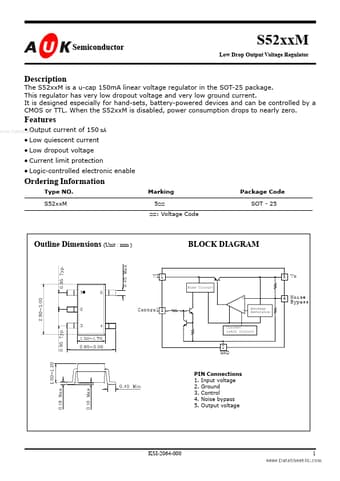

Preview of S5225M PDF
S5225M Datasheet Preview Page 2 S5225M Datasheet Preview Page 3

Datasheet Details

Part number:

S5225M

Manufacturer:

AUK

File Size:

461.57 KB

Description:

Low drop output voltage regulator.
