S5228M Low Drop Output Voltage Regulator

The S52xxM is a u-cap 150mA linear voltage regulator in the SOT-25 package. This regulator has very low dropout voltage and very low ground current. It is designed especially for hand-sets, battery-powered devices and can be controlled by a CMOS or TTL. When the S52xxM is disabled, power consumption.

S5228M Features

* Output www.DataSheet4U.com current of 150 ㎃

* Low quiescent current

* Low dropout voltage

* Current limit protection

* Logic-controlled electronic enable Ordering Information Type NO. S52xxM Marking 5

* : Voltage Code Packa

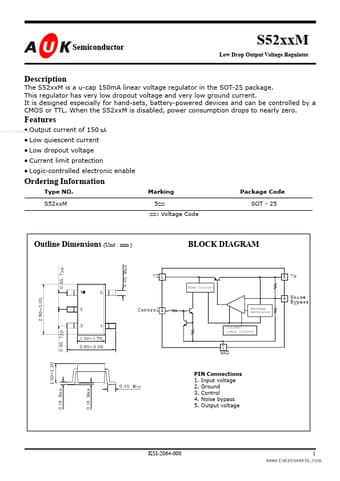

S5225M_AUK.pdf

S5228M Datasheet Preview — This datasheet PDF includes multiple part numbers: S5228M, S5225M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S5228M, S5225M

Manufacturer:

AUK

File Size:

461.57 KB

Description:

Low drop output voltage regulator.

Note:

This datasheet PDF includes multiple part numbers: S5228M, S5225M.
Please refer to the document for exact specifications by model.
