SN317D2

Positive Voltage Regulator

SN317D2 General Description

The SN317 is an adjustable 3-terminal positive voltage regulator capable of supplying in excess of 1.5 A over an output voltage range of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal.

SN317D2 Datasheet (531.05 KB)

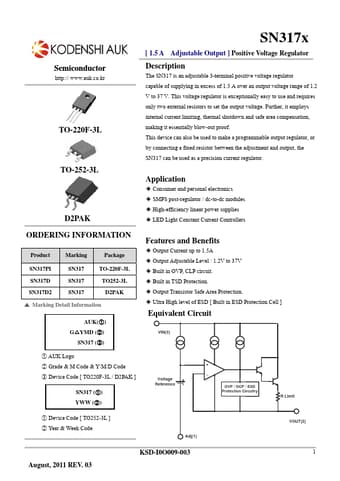

Preview of SN317D2 PDF

Datasheet Details

Part number:

SN317D2

Manufacturer:

AUK

File Size:

531.05 KB

Description:

Positive voltage regulator.
