SN321 Low Power Single OP AMP

SN321 Description

www.DataSheet.co.kr Low Power Single OP-AMP Semiconductor http:// www.auk.co.kr SN321 .
The SN321 consists of a high gain Internally frequency compensated operational amplifier designed to operate from a single power supply over a wide ra.

SN321 Features

* ◈ Input common mode voltage range includes ground ◈ Internally frequency compensated for unity gain ◈ Large DC voltage gain : 100dB 321
* ◈ Wide bandwidth for unity gain : 1 MHz ◈ Very low power consumption ◈ Wide supply voltage range : [ Single : 3V ~ 30V, Dual : ±1.5 ~ ±15V ] [Marking De

SN321 Applications

* even in dual supply applications. it is also can be driven large capacitive loads. The SN321 is available in the SOT-25(SOT23-5) package. SOT-25 Application ◈ Power supplies ◈ Chargers ◈ Desktops ◈ Conventional operational amplifiers ◈ Communications infrastructure ORDERING INFORMATION Product N

📥 Download Datasheet

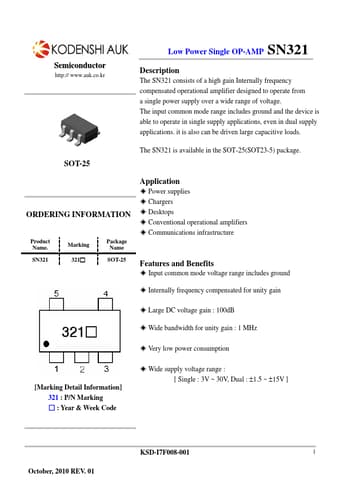

Preview of SN321 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SN321
Manufacturer
KODENSHI KOREA
File Size
375.63 KB
Datasheet
SN321_KODENSHIKOREA.pdf
Description
Low Power Single OP AMP
