SN3257-Q1

4-Channel Switch

SN3257-Q1 Features

* 1 AEC-Q100 qualified for automotive application

* Temperature grade 1: -40°C to +125°C, TA

* Wide supply range: 1.5 V to 5.5 V

* Low propagation delay: 78 ps

* Low on-resistance: 5 Ω

* High bandwidth: 1.2 GHz

* Bidirectional Signal Path

SN3257-Q1 General Description

The SN3257-Q1 is an automotive grade complementary metal-oxide semiconductor (CMOS) switch that supports high speed signals with low propagation delay. The SN3257-Q1 offers a 2:1 (SPDT) switch configuration with 4-channels making it ideal for multi-lane protocols such as SPI and I2S. The device supp.

SN3257-Q1 Datasheet (1.71 MB)

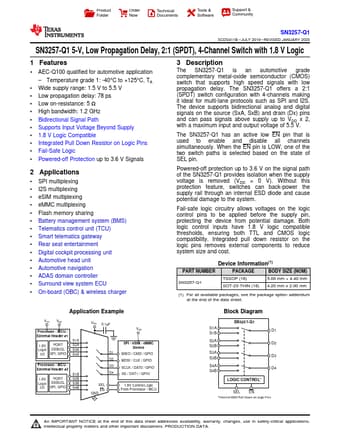

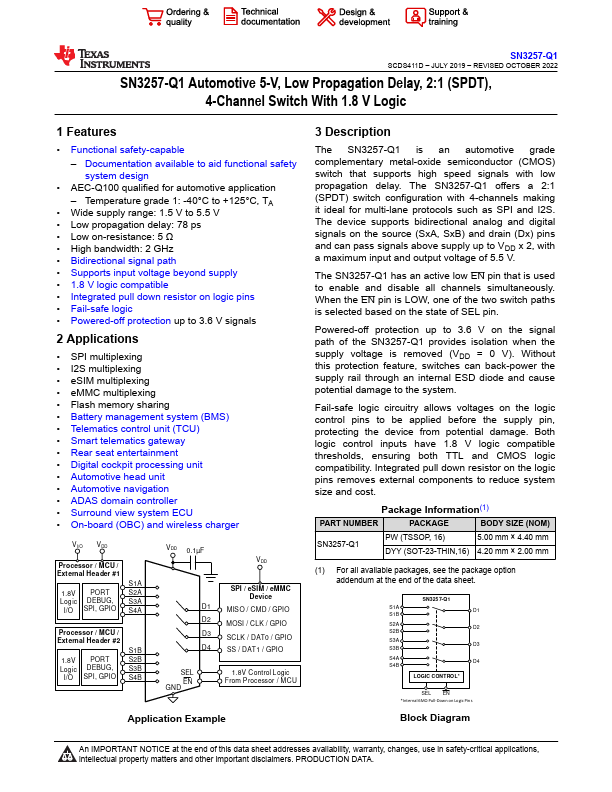

Preview of SN3257-Q1 PDF

Datasheet Details

Part number:

SN3257-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.71 MB

Description:

4-channel switch.
Product Folder Order Now Technical Documents Tools & Software Support & Community SN3257-Q1 SCDS411B JULY 2019 REVISED JANUAR.

📁 Related Datasheet

SN321 Low Power Single OP AMP (KODENSHI KOREA)

SN3218 18 Channel LED Driver (SI-EN Technolog)

SN3218A 18 Channel LED Driver (SI-EN Technolog)

SN3228A (SN3228A/B) White LED Driver (SI-EN)

SN3228B (SN3228A/B) White LED Driver (SI-EN)

SN324 Low Power Quad OP AMP (KODENSHI KOREA)

SN324P Low Power Quad OP AMP (KODENSHI KOREA)

SN3020 Smart Energy Module (Murata)

SN3112-09 9-channel LED control chip (SI-EN)

SN3112-12 12-channel LED control chip (SI-EN)

TAGS

SN3257-Q1 4-Channel Switch Texas Instruments

Image Gallery

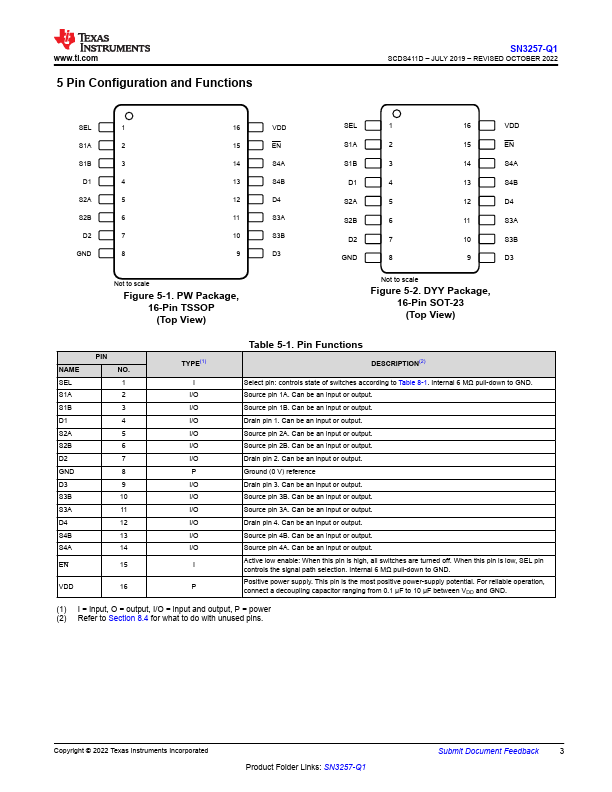

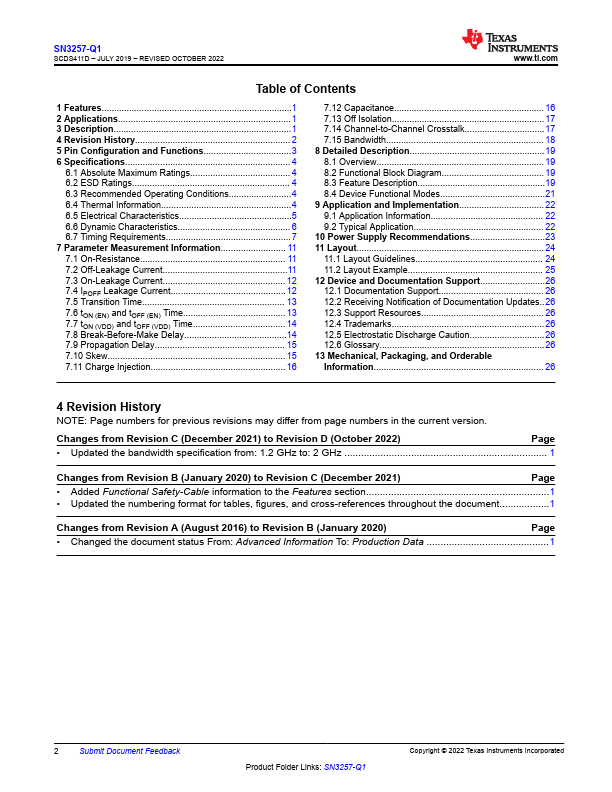

SN3257-Q1 Datasheet Preview Page 2 SN3257-Q1 Datasheet Preview Page 3
