SN324P, SN324 Low Power Quad OP AMP

SN324P Description

www.DataSheet.co.kr Low Power Quad OP AMP Semiconductor http:// www.auk.co.kr SN324/P .
The SN324/P is quad operational amplifiers with true differential inputs.

SN324P Features

* ◈ Short Circuited Protected Outputs ◈ True Differential Input Stage ◈ Single Supply Operation: 3.0 V to 32 V ◈ Low Input Bias Currents: 100 nA Maximum ◈ Common Mode Range Extends to Negative Supply ▲ Marking Information SN324(①) AUK YYWW(②) ① Device Code ② Year & Week Code KSD-I7E002-001 October,

SN324P Applications

* The quad amplifier can operate at supply voltages as low as 3.0 V or as high as 32V, The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. SOP-14 The output voltage range also includes the negative power su

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SN324P, SN324. Please refer to the document for exact specifications by model.

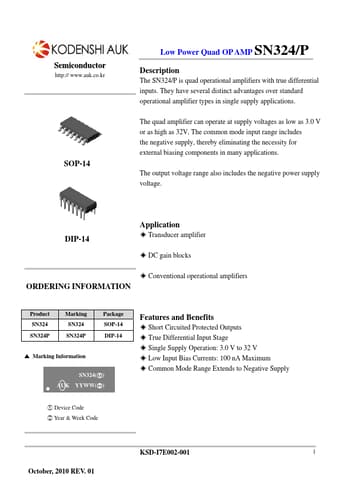

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SN324P, SN324
Manufacturer
KODENSHI KOREA
File Size
429.93 KB
Datasheet
SN324_KODENSHIKOREA.pdf
Description
Low Power Quad OP AMP
Note
This datasheet PDF includes multiple part numbers: SN324P, SN324.
Please refer to the document for exact specifications by model.
