STD361 - NPN Silicon Transistor

The STD361 by AUK is a NPN Silicon Transistor. Below is the official datasheet preview.

📥 Download Datasheet

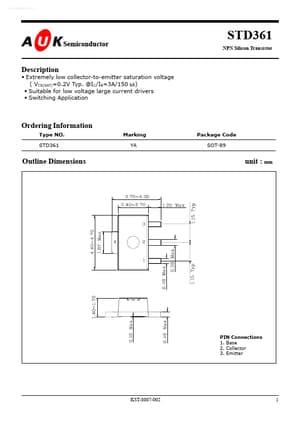

Official preview page of the STD361 NPN Silicon Transistor datasheet (AUK).

Datasheet Details

Part number STD361
Manufacturer AUK
File Size 284.45 KB
Description NPN Silicon Transistor
Datasheet download datasheet STD361_AUK.pdf
Additional preview pages of the STD361 datasheet.

STD361 Product details

Description

Extremely low collector-to-emitter saturation voltage ( VCE(SAT)=0.2V Typ. Suitable for low voltage large current drivers Switching Application Ordering Information Type NO.STD361 Marking YA Package Code SOT-89 Outline Dimensions unit : mm PIN Connections 1. Base 2. Collector 3. Emitter KST-8007-002 1 STD361 Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emitter voltage Emitter-Base voltage Collector current Collect
