STK1625F - Advanced Power MOSFET

Datasheet Summary

Features

  • High Voltage: BVDSS=250V(Min. ) Low Crss : Crss=18pF(Typ. ) Low gate charge : Qg=29nC(Typ. ) Low RDS(on) :RDS(on)=0.27Ω(Max. ) Type NO. STK1625F Marking STK1625 Package Code TO-220F-3L Ordering Information Outline Dimensions unit : mm 9.80~10.20 Φ3.05~3.35 2.60~3.00 15.40~15.80 12.20~12.60 9.10~9.30 1.07 Min. 0.90 Max. 0.60 Max. 2.54 Typ. 2.54 Typ. 1 2 3 0.60 Max. 3.46 Typ. 4.70 Max. 2.70 Max. PIN Connections 1. Gate 2. Drain 3. Source KSD-.

📥 Download Datasheet

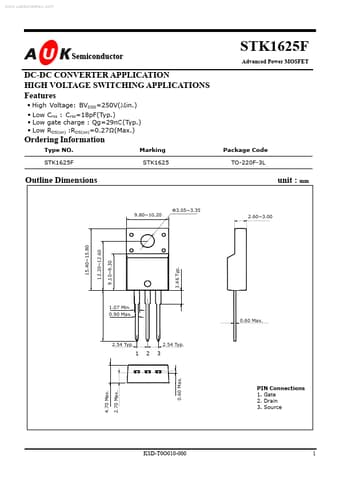

Datasheet preview – STK1625F

Datasheet Details

Part number STK1625F
Manufacturer AUK
File Size 491.82 KB
Description Advanced Power MOSFET
Datasheet download datasheet STK1625F Datasheet
