STK1828EF - N-Channel Enhancement-Mode MOSFET

Datasheet Summary

Description

High speed switching application.

Analog switch application.

Features

  • 2.5V Gate drive.
  • Low threshold voltage : Vth = 0.5~1.5V.
  • High speed. Ordering Information Type NO. STK1828EF Marking K8 Package Code SOT-523F Outline Dimensions unit : mm 1.60±0.1 0.88±0.1 1 1.60±0.1 1.00±0.1 3 2 0.25~0.30 +0.1 0.68 -0.05 0~0.1 0.11±0.05 w w w a D . S a t e e h U 4 t m o . c PIN Connections 1. Gate 2. Source 3. Drain KST-4012-000 1 www. DataSheet4U. com STK1828EF Absolute maximum ratings Characteristic Drain-Source voltage Gate-S.

📥 Download Datasheet

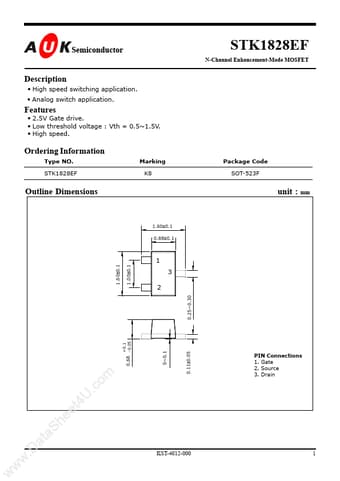

Datasheet preview – STK1828EF

Datasheet Details

Part number STK1828EF
Manufacturer AUK
File Size 317.71 KB
Description N-Channel Enhancement-Mode MOSFET
Datasheet download datasheet STK1828EF Datasheet
