STK5006P - Advanced Power MOSFET

STK5006P Description

Semiconductor STK5006P Advanced Power MOSFET SWITCHING REGURATOR APPLICATIONS .

STK5006P Features

* High Voltage: BVDSS=60V(Min. )
* Low Crss : Crss=84pF(Typ. )
* Low gate charge : Qg= 26.7nC(Typ. )
* Low RDS(on) :RDS(on)=25mΩ(Max. ) Ordering Information Type NO. STK5006P STK5006 Marking Package Code TO-220AB-3L Outline Dimensions Φ3.90 Max. 9.80~10.20 1.17~1.37 un

📥 Download Datasheet

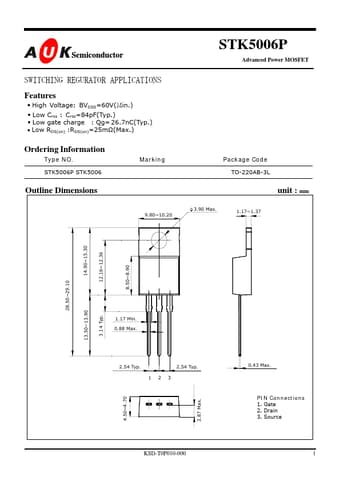

Preview of STK5006P PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK5006P
Manufacturer
AUK
File Size
502.19 KB
Datasheet
STK5006P-AUK.pdf
Description
Advanced Power MOSFET
