SUM201MN

P-Channel MOSFET + PNP BJT

SUM201MN Features

* Low RDS(on) (MOSFET) and Low VCE(sat) (Transistor)

* Higher Efficiency Extending Battery Life

* Logic Level Gate Drive (MOSFET)

* Performance DFN Package BVDSS -20V BVCEO MOSFET RDS(ON) Typ. 48mΩ @ VGS=-4.5V 65mΩ @ VGS=-2.5V PNP BJT BVEBO.

* This is a Hal

SUM201MN Datasheet (423.70 KB)

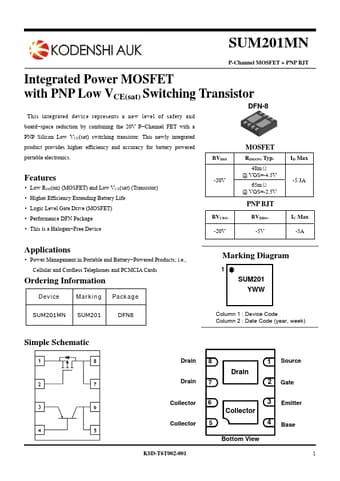

Preview of SUM201MN PDF

Datasheet Details

Part number:

SUM201MN

Manufacturer:

AUK

File Size:

423.70 KB

Description:

P-channel mosfet + pnp bjt.
SUM201MN P-Channel MOSFET + PNP BJT Integrated Power MOSFET with PNP Low VCE(sat) Switching Transistor DFN-8 This integrated device represents a ne.
