SUTP052G - Dual PNP Bipolar transistor

AUK

The SUTP052G by AUK is a Dual PNP Bipolar transistor. Below is the official datasheet preview.

Datasheet Details

Part number	SUTP052G
Manufacturer	AUK
File Size	352.29 KB
Description	Dual PNP Bipolar transistor
Datasheet	SUTP052G-AUK.pdf

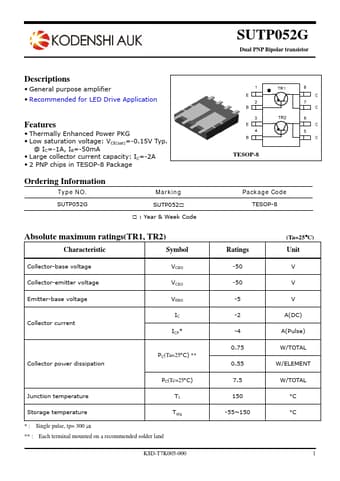

Additional preview pages of the SUTP052G datasheet.

General purpose amplifier Recommended for LED Drive Application

Thermally Enhanced Power PKG.
Low saturation voltage: VCE(sat)=-0.15V Typ. @ IC=-1A, IB=-50mA.
Large collector current capacity: IC=-2A.
2 PNP chips in TESOP-8 Package Ordering Information Type NO. SUTP052G Marking SUTP052.
: Year & Week Code Absolute maximum ratings(TR1, TR2) Characteristic Symbol Collector-base voltage VCBO Collector-emitter voltage Emitter-base voltage VCEO VEBO Collector current IC ICP.
Collector power di.
