S381206 Power Side Lighting LED

S381206 Description

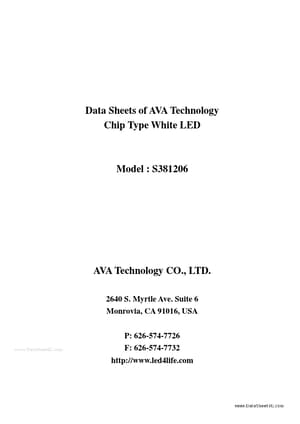

Data Sheets of AVA Technology Chip Type White LED Model : S381206 AVA Technology CO., LTD.2640 S.Myrtle Ave.Suite 6 Monrovia, CA 91016, USA P: 62.
& Condition Tsld =2455℃, 10sec, 1 time Sample size Ac/Re Failure Criteria 1 Solderability 22 0/1 2 Room Temperature operating Ta = 25 °C IF.

S381206 Features

* ˙High intensity with small package, ideal for backlighting
* Wide viewing angle ( 115° )
* Package Outline (L×W×H)= 3.8×1.2×0.60 mm
* Technology : InGaN
* Zener Protect package
* Color coordinates CIE(x,y) : (0.30,0.30) according to CIE 1931.
* Suitable for all SMT assembly m

S381206 Applications

* Automotive: indoor lighting. Signal and symbol lightings Backlighting (mobile phones, displays, PDA, Digital Camera…. . ) All applications in notice high intensities are required 3. DEVICES PACKAGE ITEM Package Encapsulating Electrodes MATERIALS Heat-Resistant Polymer Heat Res

📥 Download Datasheet

Preview of S381206 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S381206
Manufacturer
AVA Technology
File Size
379.52 KB
Datasheet
S381206_AVATechnology.pdf
Description
Power Side Lighting LED
