S380

SMD Single Phase Bridge Rectifier

S380 Features

* Besonderheit 5.1+0.2 UL recognized, File E175067 UL-anerkannt, Liste E175067 6.5+ 0 .3 Slim profile package Halogen Schlanke Bauhöhe Low forward voltage drop FREE Niedrige Fluss-Spannung Compliant to RoHS, REACH, Conflict Minerals 1) WEEE RoHS Pb ELV Konform zu RoHS, REACH, Konfliktmi

S380 Datasheet (181.13 KB)

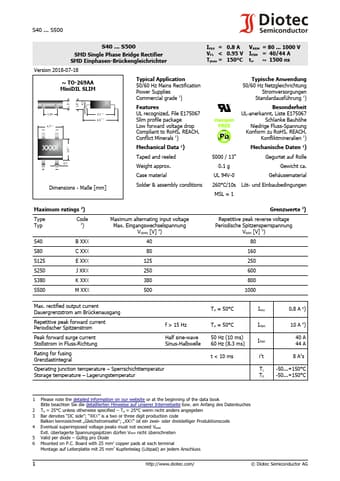

Preview of S380 PDF

Datasheet Details

Part number:

S380

Manufacturer:

Diotec

File Size:

181.13 KB

Description:

Smd single phase bridge rectifier.
S40 S500 S40 S500 SMD Single Phase Bridge Rectifier SMD Einphasen-Brückengleichrichter IFAV = VF1 < Tjmax = 0.8 A 0.95 V 150°C VRRM = 80 1000 V.
