ACPL-M61U-000E

Wide Operating Temperature 10MBd Digital Optocoupler

ACPL-M61U-000E General Description

This small outline wide operating temperature, high CMR, high speed, logic gate optocoupler is a single channel device in a five lead miniature footprint. The ACPL-M61U optically coupled gates combine a AlGaAs light emitting diode and an integrated high gain photo detector. The output of the detecto.

ACPL-M61U-000E Datasheet (382.78 KB)

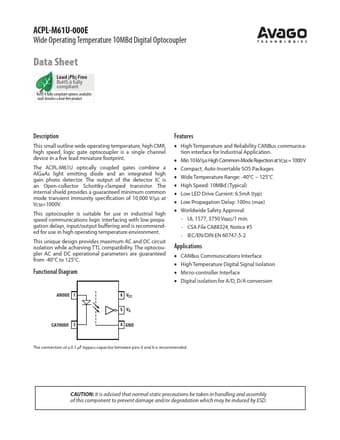

Preview of ACPL-M61U-000E PDF

Datasheet Details

Part number:

ACPL-M61U-000E

Manufacturer:

AVAGO

File Size:

382.78 KB

Description:

Wide operating temperature 10mbd digital optocoupler.
ACPL-M61U-000E Wide Operating Temperature 10MBd Digital Optocoupler Data Sheet Lead (Pb) Free RcoomHSpl6iafnutlly RoHS 6 fully compliant options avail.
