ACPL-M43U-000E

Wide Operating Temperature 1MBd Digital Optocoupler

ACPL-M43U-000E General Description

The ACPL-M43U is a single channel, high temperature, high CMR, high speed digital optocoupler in a five lead miniature footprint specifically used for industrial applications. The SO-5 JEDEC registered (MO-155) package outline does not require “through holes” in a PCB. This package occupies approxim.

ACPL-M43U-000E Datasheet (320.36 KB)

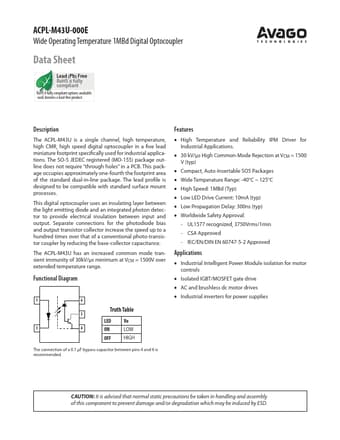

Preview of ACPL-M43U-000E PDF

Datasheet Details

Part number:

ACPL-M43U-000E

Manufacturer:

AVAGO

File Size:

320.36 KB

Description:

Wide operating temperature 1mbd digital optocoupler.
ACPL-M43U-000E Wide Operating Temperature 1MBd Digital Optocoupler Data Sheet Lead (Pb) Free RoHS 6 fully compliant RoHS 6 fully compliant options ava.
